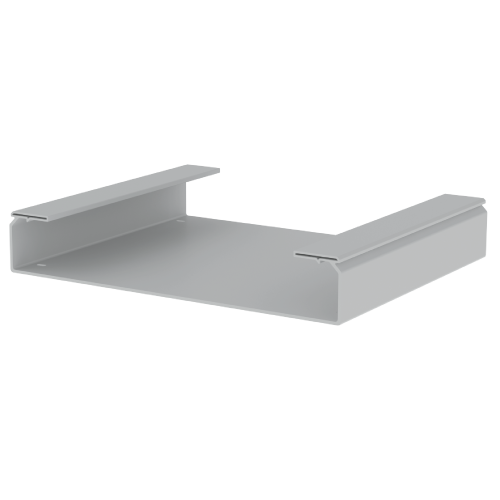

Unex continuous cable tray 100x600 in U41X/U43X halogen free
Part no.: 66621-44
Unex continuous cable tray 100x600 in U41X/U43X halogen free
Part no.: 66621-44
Packaging quantity: 6 m
Own raw material: U41X / U43X
Colour:
Grey RAL 7035
Length: 3 m
ETIM 10.0: EC000047
ECLASS 15.0: 27-40-05-02
EAN: 8428884027333
Observations: This article is substituted by the article 66621-48
Quality marks and approvals
Description
Excellent equipment protection.
Good performance outdoor and to corrosion.
Designed to support full load.
Maintains its features at high temperatures.
Insulating material, halogen free.
Length: 3m.
Grey.
Insulating cable tray according to IEC 61537: 2006 (The values indicated according to IEC 61537: 2006 have been tested under its European implementation EN 61537:2007.
BS EN 61537 is the UK implementation of EN 61537 and IEC 61537).
Insulating cable tray with cover (insulating trunking) according to EN 50085-1:1997.
Halogen free.
Safety: electrical; mechanical (protection against impacts 20J acc.
IEC 61537; designed to work at 100% cable capacity) and in front of fire (glow-wire test at 960°C; non-flame propagator).
Easy and quick mounting.
No burrs at cutting.
Good performance outdoor, to corrosion and to chemical agents.
Mounting instructions
In this video we show you step by step how to assemble correctly, easily and quickly.
